We produce decorative lighting for glass edge surface

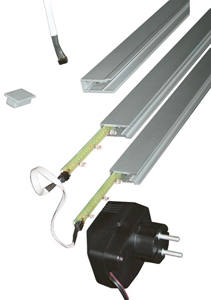

Technical Features of the Edge Lighting System of the Glass Panels
LED board
Main features:
- Board length ...................... 270mm
- Board width ........................ 9mm
- LED number.........................10p.c.
- LED connection ....................cascade connection
- LED colors:
- white
- blue
- orange
- green
- red
Adapter cord
- The LED board connects with the help of adapters
- Length of the adapter cord:
Puls Power Supply Unit (PSU) MBI-8/1-PBS.
Main features:
- Input voltage........................................................~180-250Â
- Output voltage .....................................................8±0,5Â
- Ampere rating.......................................................1À.
- Mean life..............................................................45000 ÷
- Maximum time of returning into an operating mode...0,2s
- Galvanic isolation of the secondary supply circuit.
- 1. Built-in protection from the input voltage swing, protection from short circuit during operation mode and excess of the maximum voltage.
The minimum PSU load– boards with the length 270mm in the quantity of 2 pc (600mm).
The maximum PSU load – boards with the length 270mm in the quantity of 7 pc (2000mm).
Assembly profile
|
 |
- Material………… alluminium alloy ÀÄ31
- In compliance with …ÃÎÑÒ 4784-74
- Setting size …… 8mm, 10mm
- Setting length …… 1000mm, 2000mm
- Profile color:
|
|
Assembly profile filler
- Material...............polystyrene
- color:
For prices, please contact our sales department.
| Name |
Measure unit |
Colour |
Price incl. VAT |
| Small wholesale |
wholesale |
| Edge Lighting System of the Glass Panels |
| Assembly profile 1 l.m., 2 l.m. |
l.m. |
silver |
|
|
| black |
| LED board L=270mm |
pc. |
|
|
|
| Power Supply Unit |
pc. |
|
|
|
| Power Supply Unit with switch |
pc. |
|
|
|
| Assembly profile filler |
pc. |
grey |
|
|
| Adapter L=150mm |
pc. |
|
|
|
| Adapter L=350mm |
pc. |
|
|
|
| Adapter L=1000mm |
pc. |
|
|
|
|
|
|
